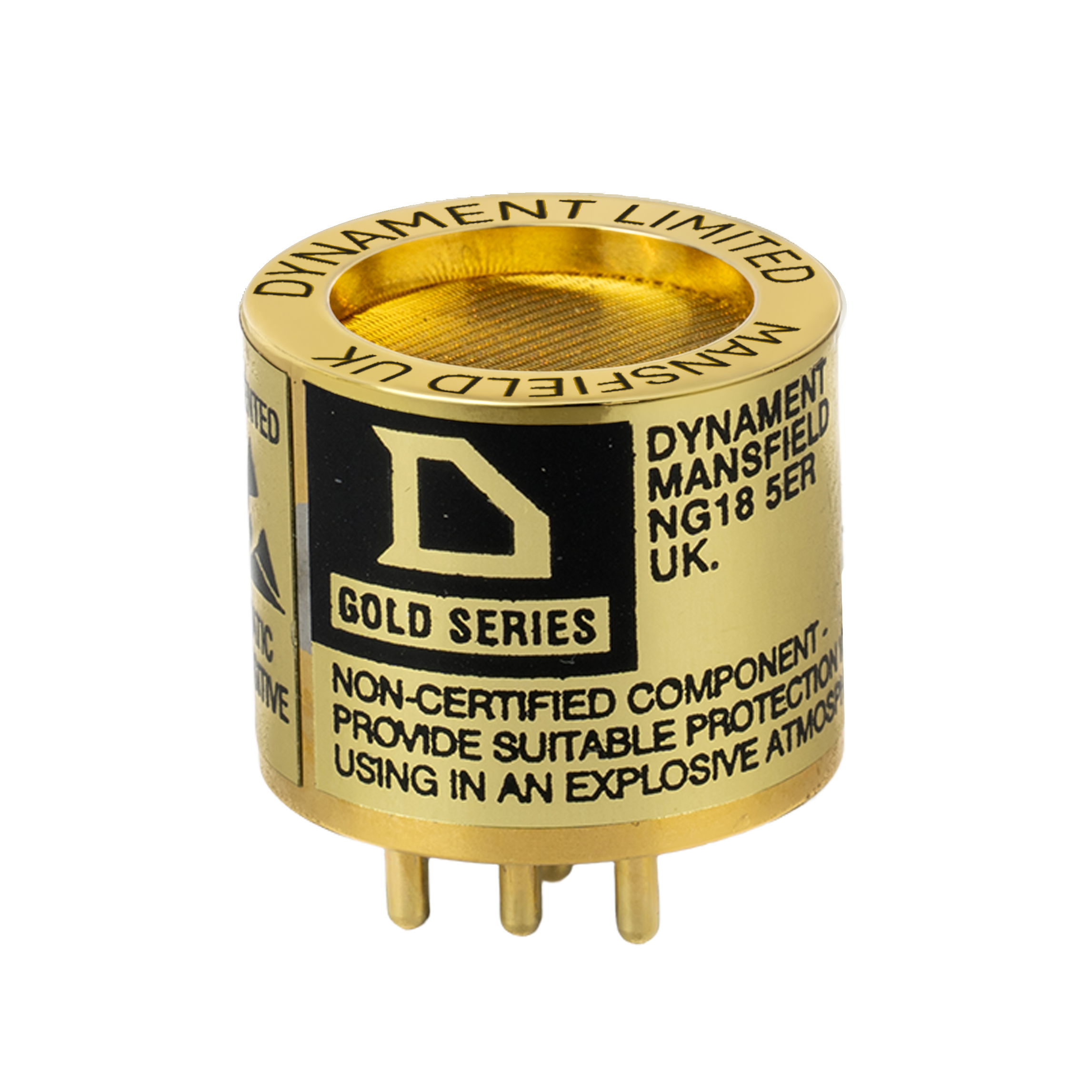

Carbon Dioxide Infrared Gas Sensor – Standard Series
Contact our experienced engineers to discuss your application needs.
Details
-
Unprocessed Signal Output: Delivers a raw sensor signal for flexible external processing and system integration.
-
Optional OEM Electronics Board: Available with onboard signal conditioning, processing electronics, and an integrated LCD display for enhanced usability.
-
Built-In Temperature Output: Provides internal temperature signal output for environmental compensation and monitoring.
-
Reliable Performance Across Temperatures: Operates effectively in a wide temperature range from -20°C to +50°C, suitable for various environments.
-
Infrared NDIR Technology: Utilizes non-dispersive infrared (NDIR) sensing for accurate and stable gas detection.

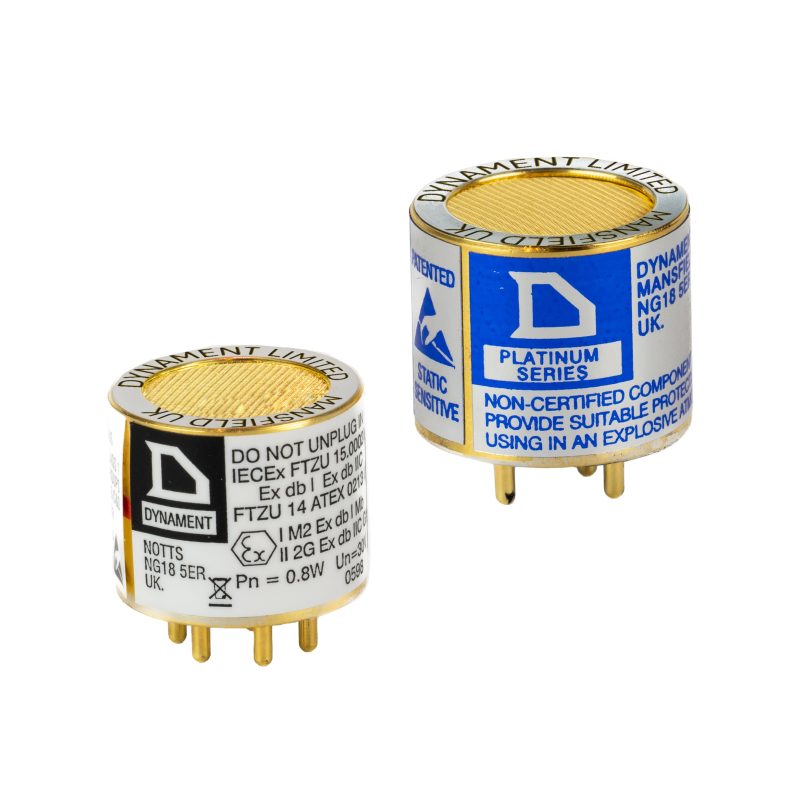

Dynament offers a comprehensive range of hydrocarbon-based infrared sensors designed to accurately detect carbon dioxide concentrations from 0 to 100% volume. These sensors use non-dispersive infrared (NDIR) technology for reliable and consistent CO₂ measurement across a wide range of applications.
The Standard Series provides a raw analog signal output, ideal for OEMs and developers who prefer to design their own drive electronics and software. Users can perform gas concentration calculations, temperature compensation, and signal linearization using the supporting application notes available for download.
For those seeking a ready-to-integrate solution, the OEM-1 module offers built-in electronics, a clear digital display, and a standard 4–20 mA analog output. This module includes embedded firmware and processing algorithms, helping manufacturers reduce development time and accelerate product launch.
Sensors are available in multiple certification options to meet specific industry requirements:
Industrial (Ex d IIC Certified)
Mining (M1 Certified)
UL Approved
Non-Certified versions for general applications
The Standard Series provides a raw analog signal output, ideal for OEMs and developers who prefer to design their own drive electronics and software. Users can perform gas concentration calculations, temperature compensation, and signal linearization using the supporting application notes available for download.
For those seeking a ready-to-integrate solution, the OEM-1 module offers built-in electronics, a clear digital display, and a standard 4–20 mA analog output. This module includes embedded firmware and processing algorithms, helping manufacturers reduce development time and accelerate product launch.
Sensors are available in multiple certification options to meet specific industry requirements:
Industrial (Ex d IIC Certified)
Mining (M1 Certified)
UL Approved
Non-Certified versions for general applications
Datasheets
tds0003_4.8-CO2-Infrared-Sensor-Data-Sheet
tds0004_4.5-CO2-NC-Infrared-Sensor-Data-Sheet
tds0089-CO2-NC-Infrared-Sensor-Data-Sheet
tds0087-CO2-NC-Infrared-Sensor-Data-Sheet
tds0020-CO2-NC-Infrared-Sensor-Data-Sheet
tds0021-CO2-NC-Infrared-Sensor-Data-Sheet
Application Note AN1
Application Note AN2
Application Note AN3
Application Note AN4
Application Note AN5
