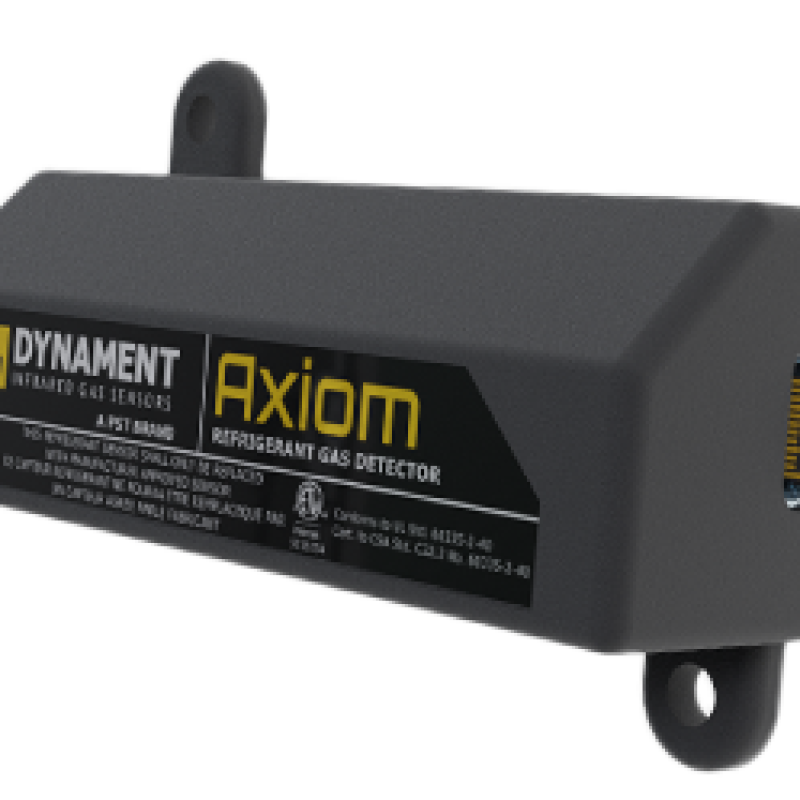

Refrigerant Infrared Gas Detector – Axiom Series
Contact our experienced engineers to discuss your application needs.
Details
-
Dynament refrigerant gas detectors cover gases including R32, R454B, R454C, R290 (Propane), R1270 (Propylene), and R744 (Carbon Dioxide).
-
Designed to measure flammable refrigerants within the lower flammable limit (LFL) range, offering a high resolution of 0.05% (500ppm).
-
Certified to UL60335-2-40 Annex LL standards for safety and reliability.
-
Features fail-safe operation ensuring dependable performance in critical environments.
-
Resistant to sensor poisoning, maintaining accuracy over time.
-
Boasts a 15-year operational lifespan with no need for calibration.
-

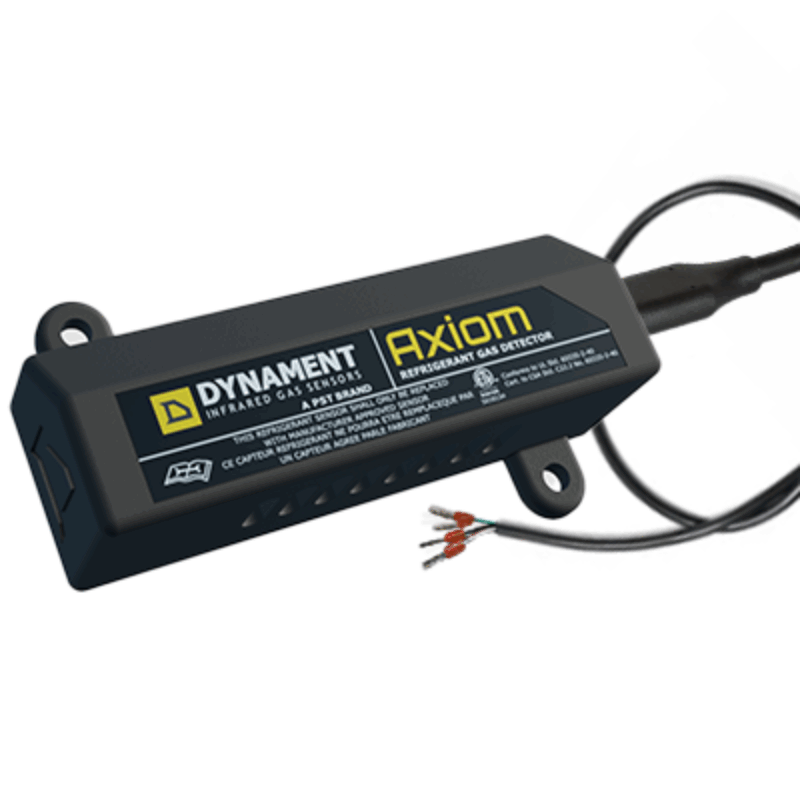

Equipped with a USB-C connector rated IP68 for easy integration with off-the-shelf cables.
-
Built-in heater prevents condensation effects, ensuring stable sensor readings.
-
Enhanced electromagnetic compatibility (EMC) protection for interference-free operation.
-
Plug-and-play design includes all necessary optics, electronics, and firmware, delivering a linearized and temperature-compensated output for quick deployment.
Digital Output Options
-
-
- RS485 Modbus output
- RS232 UART
-
Analogue Output
-
- 4-20mA
- 0.2-4.0V
- Open Collector
