Nitrous Oxide Infrared Gas Sensors – Standard Series
Contact our experienced engineers to discuss your application needs.
Details
-
Delivers a raw signal output for external processing and analysis
-
OEM board option includes integrated processing electronics and LCD display
-
Outputs internal temperature signal for precise compensation
-
Operates reliably across a broad temperature range from -20°C to +50°C
-
Employs advanced infrared NDIR technology for accurate gas detection
Dynament’s Standard series sensors deliver a raw signal output, requiring users to supply their own drive electronics and software to calculate gas concentration, apply linearization, and perform temperature compensation. Helpful application notes are available on the downloads tab to assist with this process.

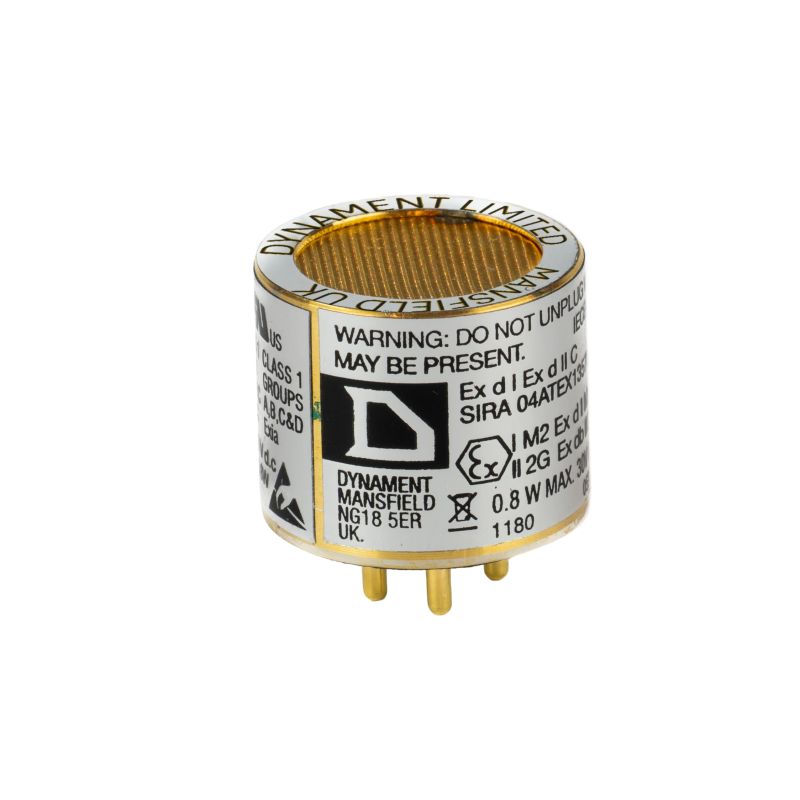

These sensors come in various certified options including Industrial Ex d IIC Certified, Mining M1 Certified, UL Approved, and Non-Certified versions. For original equipment manufacturers who prefer a ready-made solution, the OEM-1 module is offered. This module features an integrated display and a 4-20mA output, with a microcontroller that includes all necessary software and signal processing algorithms, helping to reduce development time and speed up time-to-market.
These sensors come in various certified options including Industrial Ex d IIC Certified, Mining M1 Certified, UL Approved, and Non-Certified versions. For original equipment manufacturers who prefer a ready-made solution, the OEM-1 module is offered. This module features an integrated display and a 4-20mA output, with a microcontroller that includes all necessary software and signal processing algorithms, helping to reduce development time and speed up time-to-market.
Datasheets
Accreditation & Compliance
